SB120 Genuine Anderson Plug Kit - Grey
SB120 Genuine Anderson Plug Kit - Grey
In stock
Couldn't load pickup availability
Dispatch, shipping and returns
- Dispatch Orders are dispatched within 1–3 business days, excluding weekends and public holidays.
- Free standard shipping Australia-wide on orders over A$59. The offer applies to standard Australia Post delivery only; orders under A$59 are calculated at checkout.
- Australia Post Parcel Post typically takes 2–6 business days after dispatch. Times vary by destination.
- 30-day returns Change-of-mind returns are accepted within 30 days, subject to the returns policy. Australian Consumer Law rights continue to apply.

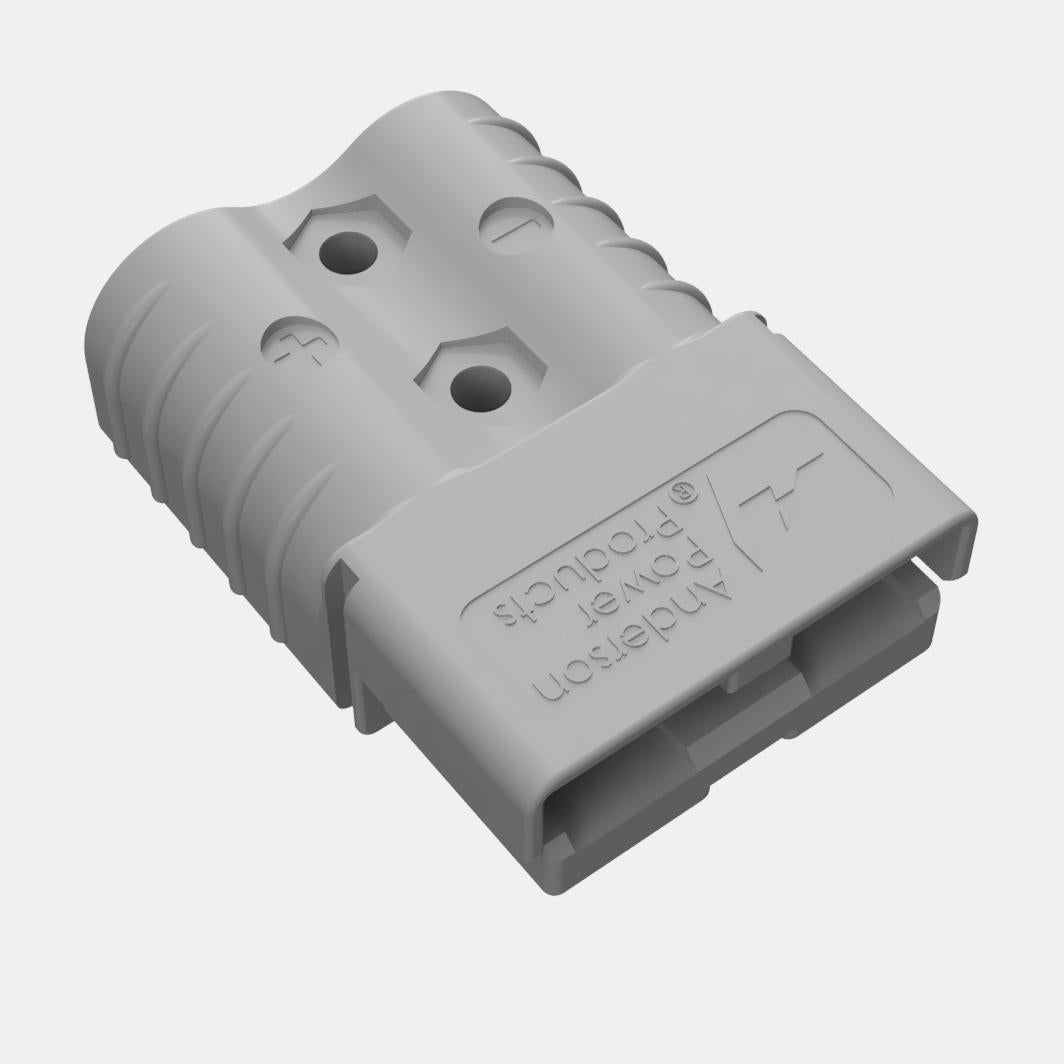

SB120 Genuine Anderson Plug Kit - Grey
A higher-current genuine Anderson SB120 plug kit for heavier 12V power connections, battery charging, canopy wiring and auxiliary power setups.
This is a genuine Anderson Power Products connector — not a copy — so you get the quality, contact fit and reliability the Anderson name is known for. The SB120 is a larger plug size than the SB50 and is suited to installs where a heavier cable and higher-current connection is required. It is commonly used across 4WD, caravan, camper trailer, canopy and battery charging setups.
This kit includes one genuine grey SB120 2-way housing and two genuine Anderson pins to suit 4AWG cable. It is designed to plug into another matching grey SB120 connector and is also suitable for use with AFS Offroad SB120 Anderson Plug Surface Mounts.
Important Colour Compatibility Note
SB120 housings are colour-keyed and are not interchangeable between colours. This grey SB120 plug is designed to connect with another matching grey SB120 plug.
Select this plug if you already have a matching grey SB120 connector fitted to your vehicle, canopy, caravan, trailer or accessory.
Common Uses
- Higher-current battery charging connection
- Canopy or trailer power connection
- Auxiliary battery wiring
- DCDC charger input or output wiring where suitable
- Heavy-duty 12V accessory power
- Caravan, camper trailer and 4WD power setups
Kit Details
| Brand | Genuine Anderson Power Products |
| Plug size | SB120 |
| Current rating | 120A |
| Colour | Grey |
| Positions | 2-way |
| Connector style | Genderless — mates with another matching grey SB120 plug |
| Kit includes | 1x genuine housing and 2x genuine pins |
| Contact size | 4AWG / 21.1mm² |
| Housing material | Polycarbonate |
Which Anderson Plug Size Do I Need?
| Plug | Best suited for | Included pin size |
|---|---|---|
| SB50 | Fridge, solar, 12V accessories and lighter-duty canopy wiring | 6AWG / 13.3mm² |
| SB120 | Higher-current charging and heavier canopy power circuits | 4AWG / 21.1mm² |
| SB175 | Battery, inverter and heavy-duty charging connections | 2AWG / 33.6mm² |
| SB350 | Very high-current charging and starting applications | 2/0AWG / 67.4mm² |
If unsure, match the plug colour, plug size and pin size to your existing connector, cable size and expected current draw.
What's Included
1x genuine Anderson grey SB120 housing
2x genuine Anderson pins to suit 4AWG cable
Note: This is one plug kit only. A second matching grey SB120 plug is required to make a complete connection. Crimping tool, cable and dust cover are not included.
Important: water protection and electrical installation
Not waterproof: Dust covers, mounting gaskets and connector mounts do not create a waterproof or watertight seal. Install them in a protected location away from direct spray, high-pressure water and immersion.
Qualified installation required: All electrical wiring and installation must be carried out by a suitably qualified electrician or auto electrician, as appropriate. The installer must select correctly rated cable, terminals, fusing and circuit protection for the application.
