Single Anderson Plug Surface Mount
Single Anderson Plug Surface Mount
In stock
Couldn't load pickup availability
Quick facts
- Fits
- Anderson SB50, SB120, SB175 or SB350 connectors, according to the selected product options.
- Included
- Mount, flexible TPU gasket and M5 countersunk stainless mounting hardware.
- Plugs included?
- No. Electrical plugs, terminals and dust covers are sold separately. Shop Anderson plugs
Selected dimensions
Complete the connector options above to see the exact mount dimensions.
Selected setup:
- Width
- —
- Length
- —
- Height
- —
Installation and gasket template
- Installation time
- Approximately 20–30 minutes.
- Difficulty
- Basic to intermediate DIY; drilling and rear-panel access are required.
- Required access holes
- Use the gasket to mark each cable or connector entry position. Drill separate access holes sized only for the cables or connector bodies; do not remove the entire inner opening.
- Marking template
- No download is required. Use the supplied gasket as the full-size template for the individual access holes and M5 mounting-hole centres.
Disconnect power, check both sides of the panel, confirm cable bend clearance and deburr every drilled edge before assembly.
Dispatch, shipping and returns
- Dispatch Orders are dispatched within 1–3 business days, excluding weekends and public holidays.
- Made to order Mounts are made to order. “In stock” means materials are available and manufacturing starts after you order.
- Free standard shipping Australia-wide on orders over A$59. The offer applies to standard Australia Post delivery only; orders under A$59 are calculated at checkout.
- Australia Post Parcel Post typically takes 2–6 business days after dispatch. Times vary by destination.
- 30-day returns Change-of-mind returns are accepted within 30 days, subject to the returns policy. Australian Consumer Law rights continue to apply.

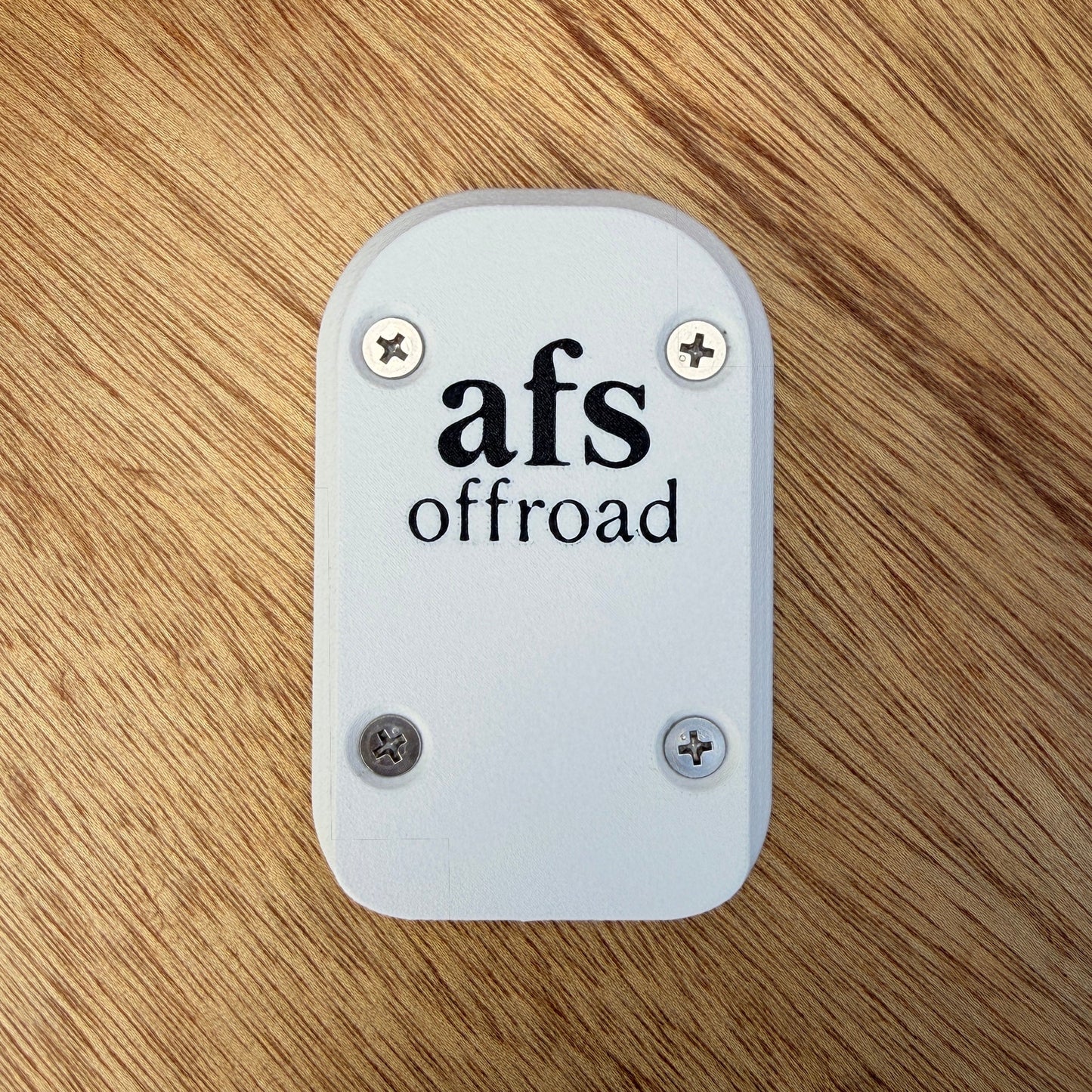

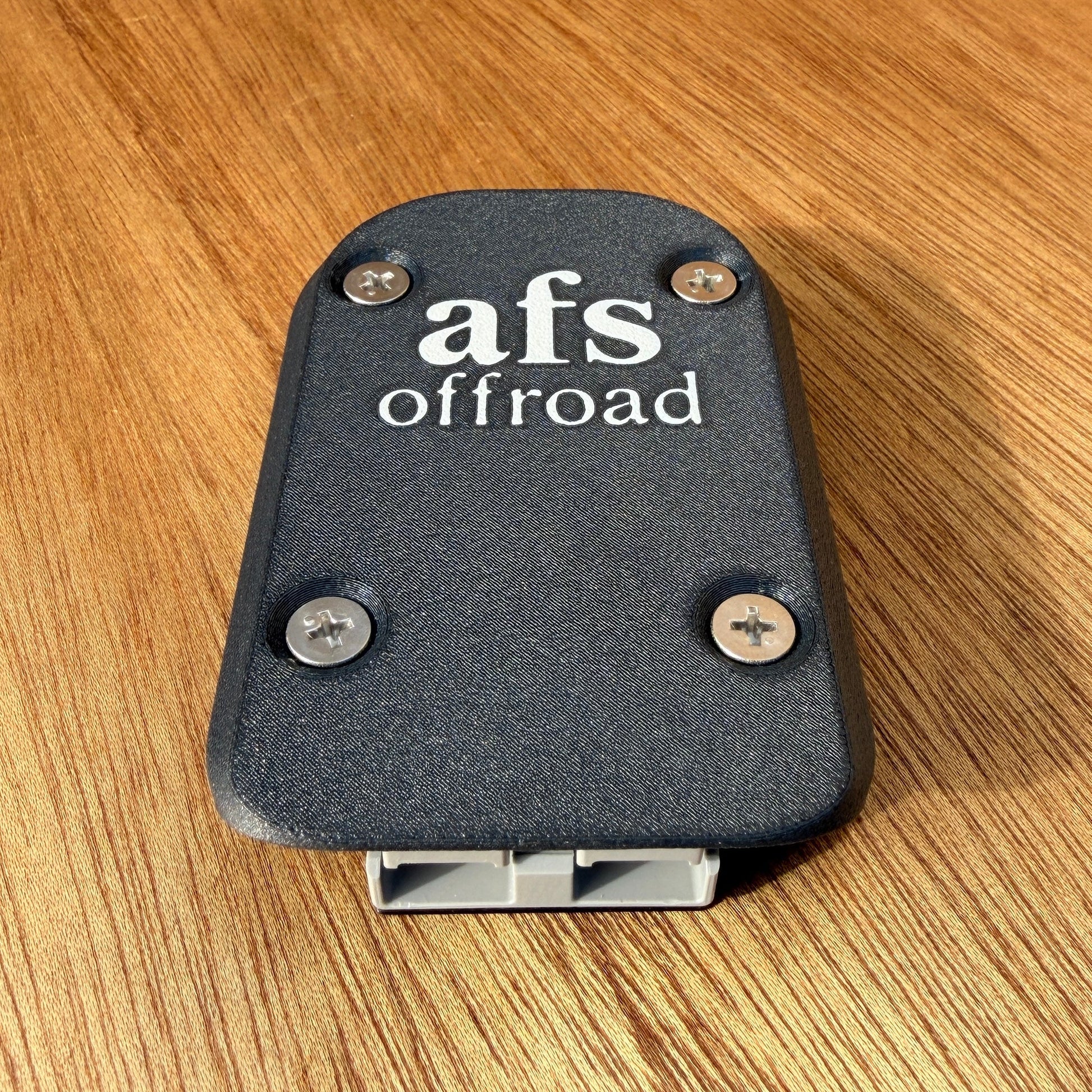

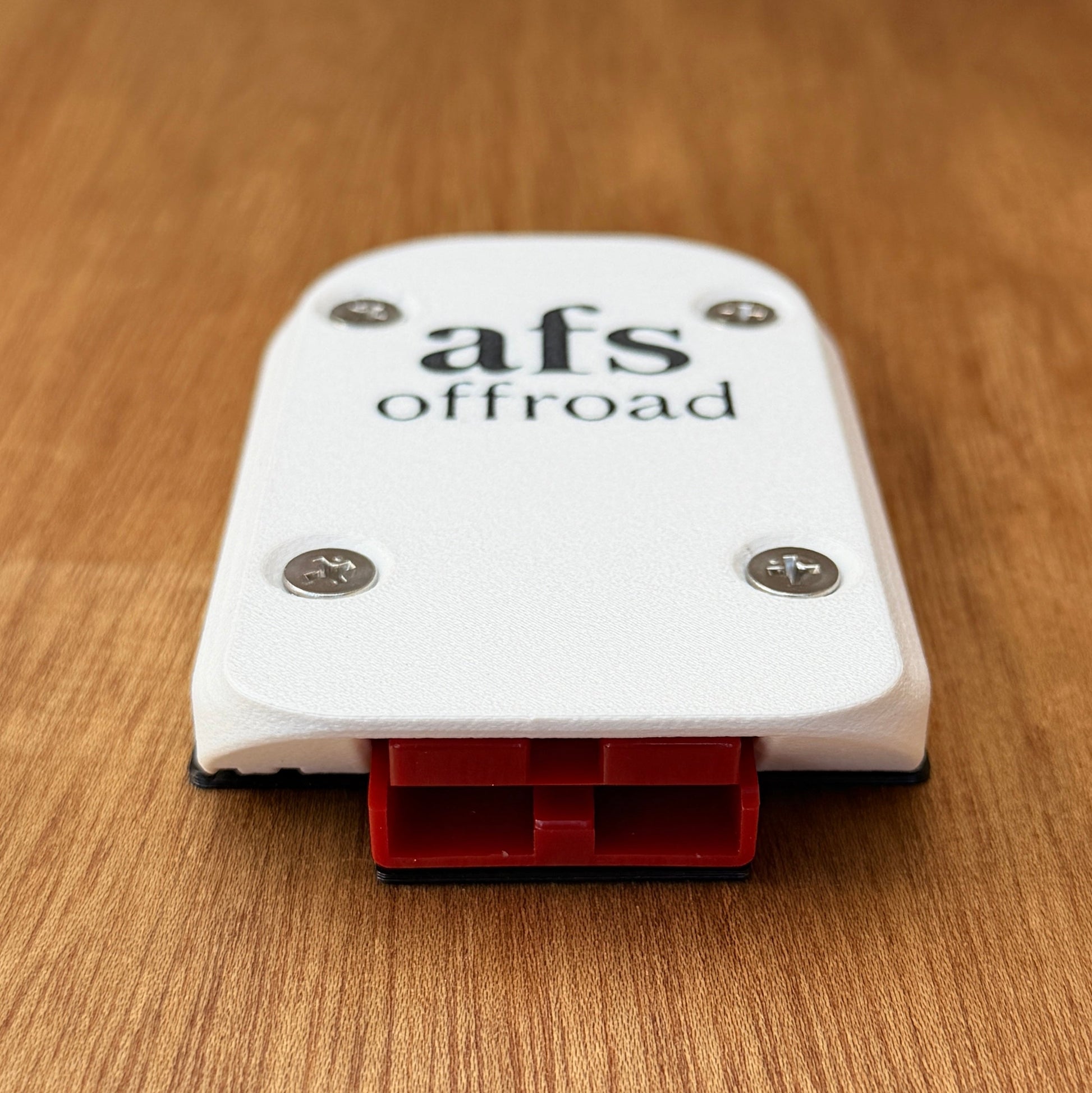

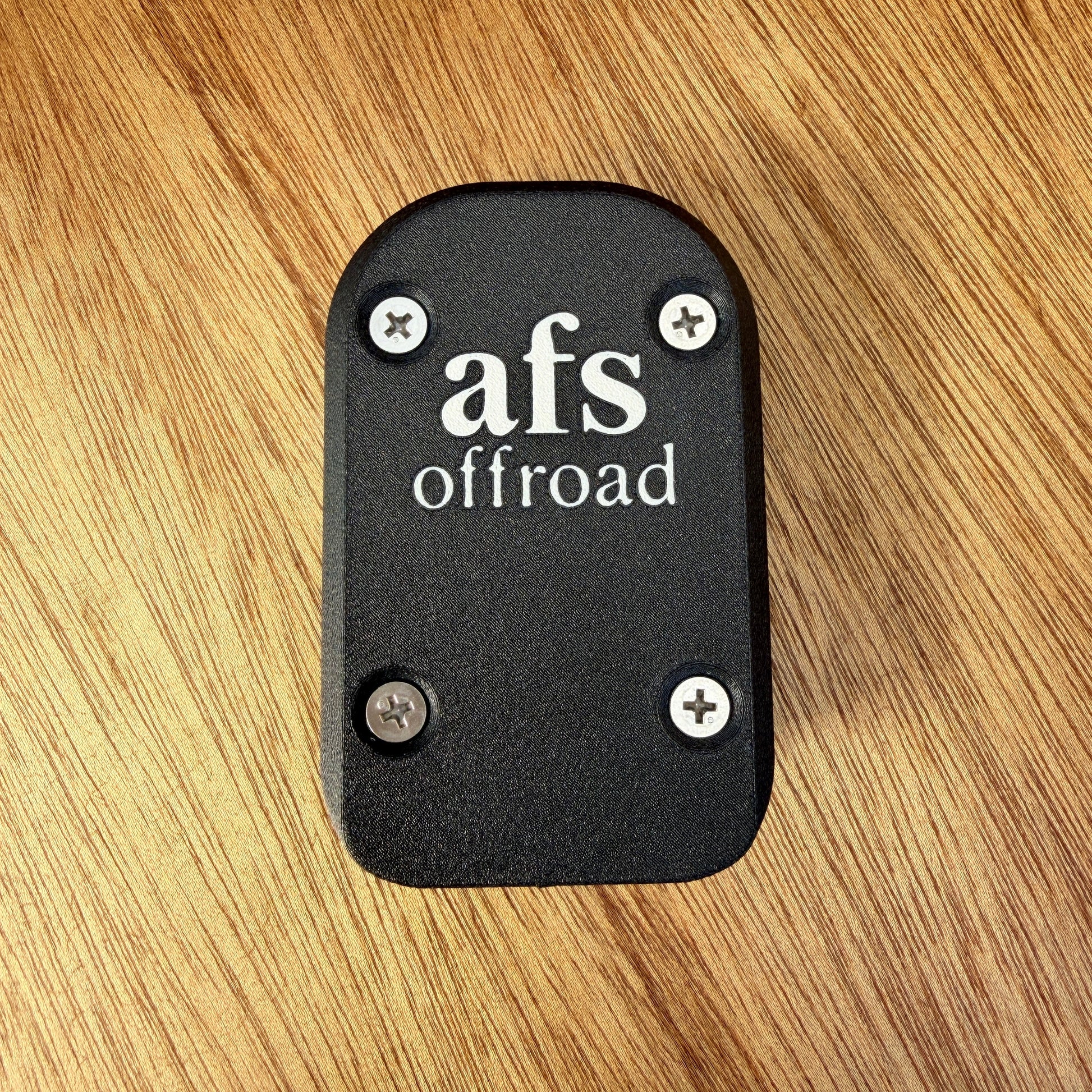

Single Anderson Plug Surface Mount
A clean, secure way to mount one Anderson plug on your canopy, tray, toolbox, caravan, camper trailer or 4WD setup.
Ideal for keeping a 12V connection neat and easy to access, instead of having a loose plug hanging off a cable or cable-tied to your setup.
Common uses include solar input, fridge power, auxiliary battery charging, compressor power, DCDC wiring, trailer power or a removable canopy power connection.
Custom Label
An optional front label can be added to identify the circuit.
What's Included
- 1x Single Anderson Plug Surface Mount

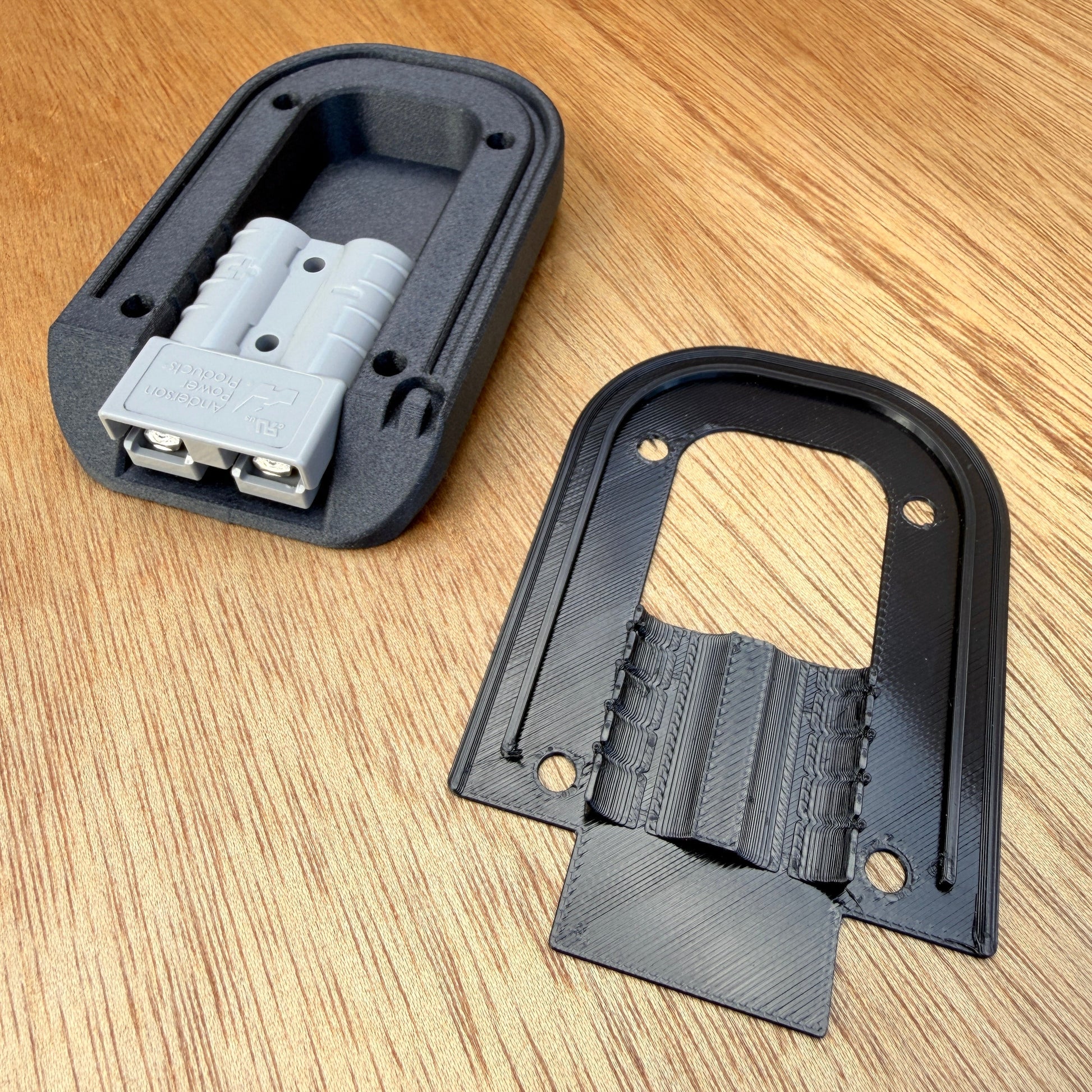

- 1x Flexible TPU mounting gasket
- M5 countersunk stainless mounting hardware
Note: Anderson plug and dust cover are sold separately.
Made in Australia
Designed and made in Australia by AFS Offroad from ASA-GF, a strong UV-resistant material suited to outdoor use.
The included Flexible TPU mounting gasket is selected for flexibility, heat resistance, UV resistance and outdoor 4WD/canopy installs.
What Plug Do I Need?
Choose the mount size to match the Anderson plug you are using. If you already have a plug fitted, match the size printed on the plug housing.
| Plug size | Typical use |
|---|---|
| SB50 | Fridge power, solar input, accessory power and lighter 12V circuits |
| SB120 | Battery charging, heavier canopy power and DCDC wiring where suitable |
| SB175 | Battery, inverter, trailer or higher-current auxiliary connections |
| SB350 | Very high-current charging, starting or equipment power setups |
If unsure, match the mount to your existing plug size, cable size and expected current draw.
Key Features
- Suits SB50, SB120, SB175 or SB350 Anderson-style plugs
- Extra cable clearance behind the plug

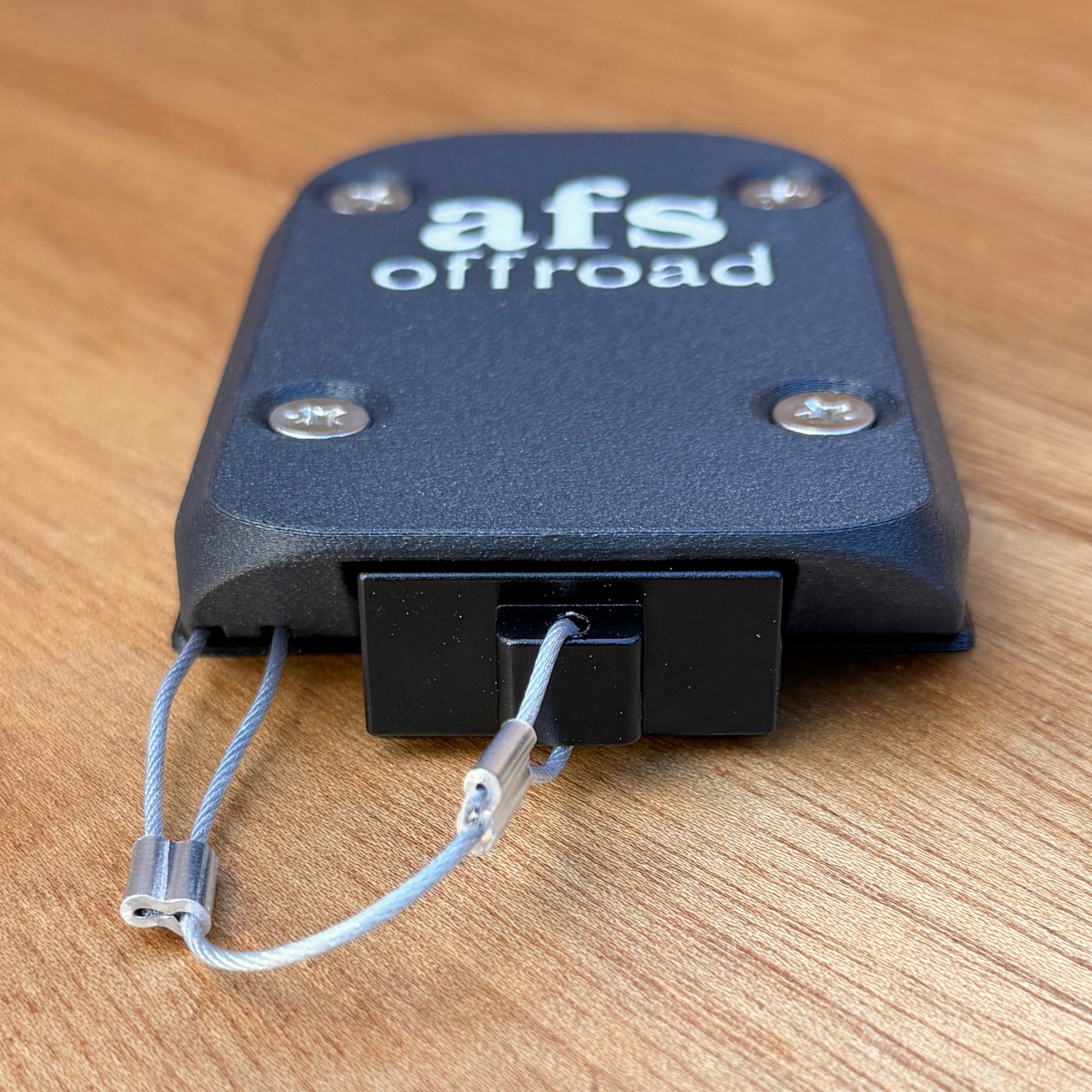

- Built-in dust cover cable cutout
- Optional front label to identify the circuit
- Clean rounded shape for a neat finished look
Installation

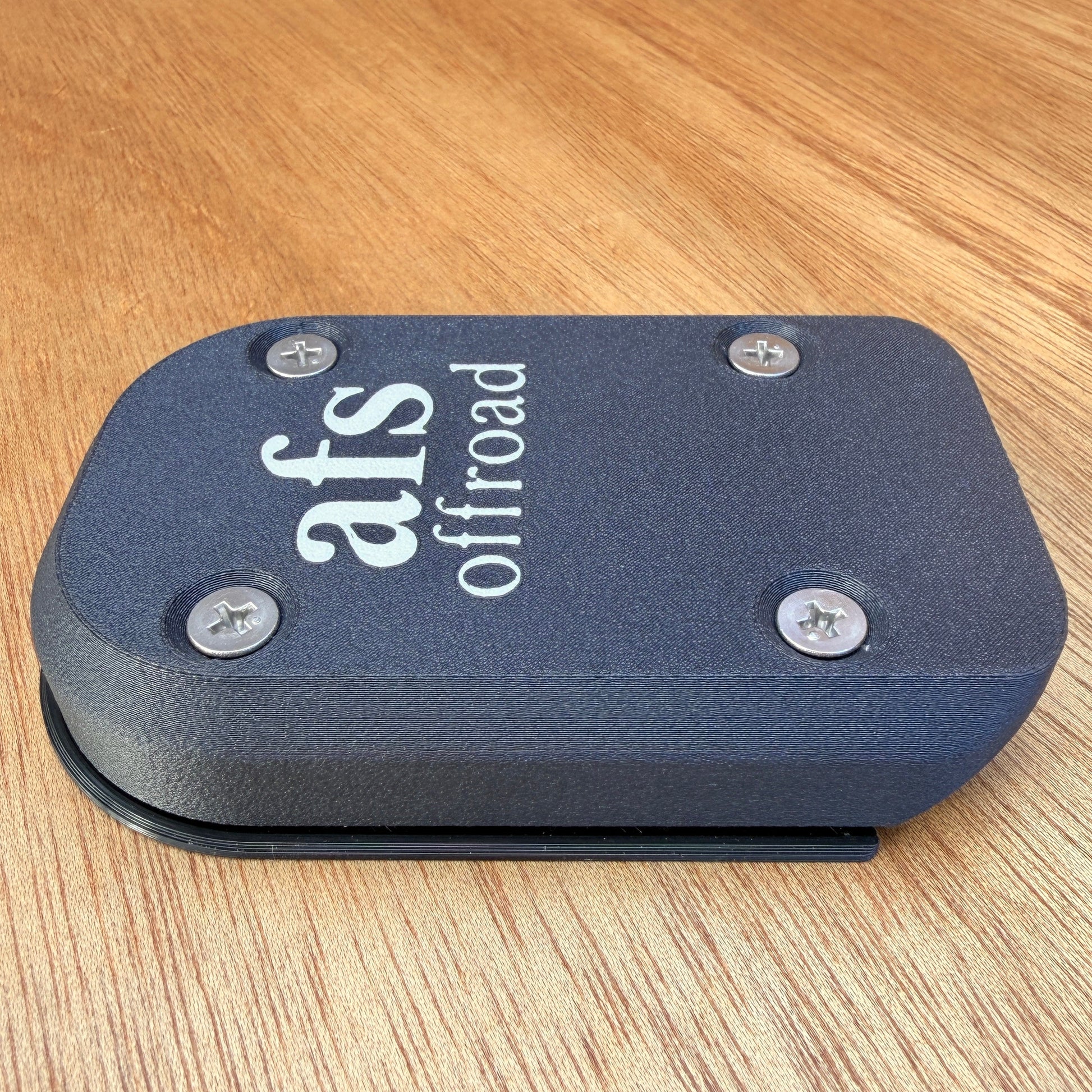

The countersunk mounting holes allow the mount to clamp down evenly over the gasket. Snug the screws down; no need to overtighten.
View the Surface Mount Installation Guide.
Backed by our 30-day change-of-mind returns, plus full cover for any fault under Australian Consumer Law.
Important: water protection and electrical installation
Not waterproof: Dust covers, mounting gaskets and connector mounts do not create a waterproof or watertight seal. Install them in a protected location away from direct spray, high-pressure water and immersion.
Qualified installation required: All electrical wiring and installation must be carried out by a suitably qualified electrician or auto electrician, as appropriate. The installer must select correctly rated cable, terminals, fusing and circuit protection for the application.
