Core Deutsch + Anderson Plug Surface Mount
A clean, secure surface mount for your Deutsch DT setup. Pick each cutout, label and add-on you need.
1ColourBlack
2 Plug size Which size?
—3 Labels Optional
4 Add-ons Skip if you have your own
Your mount

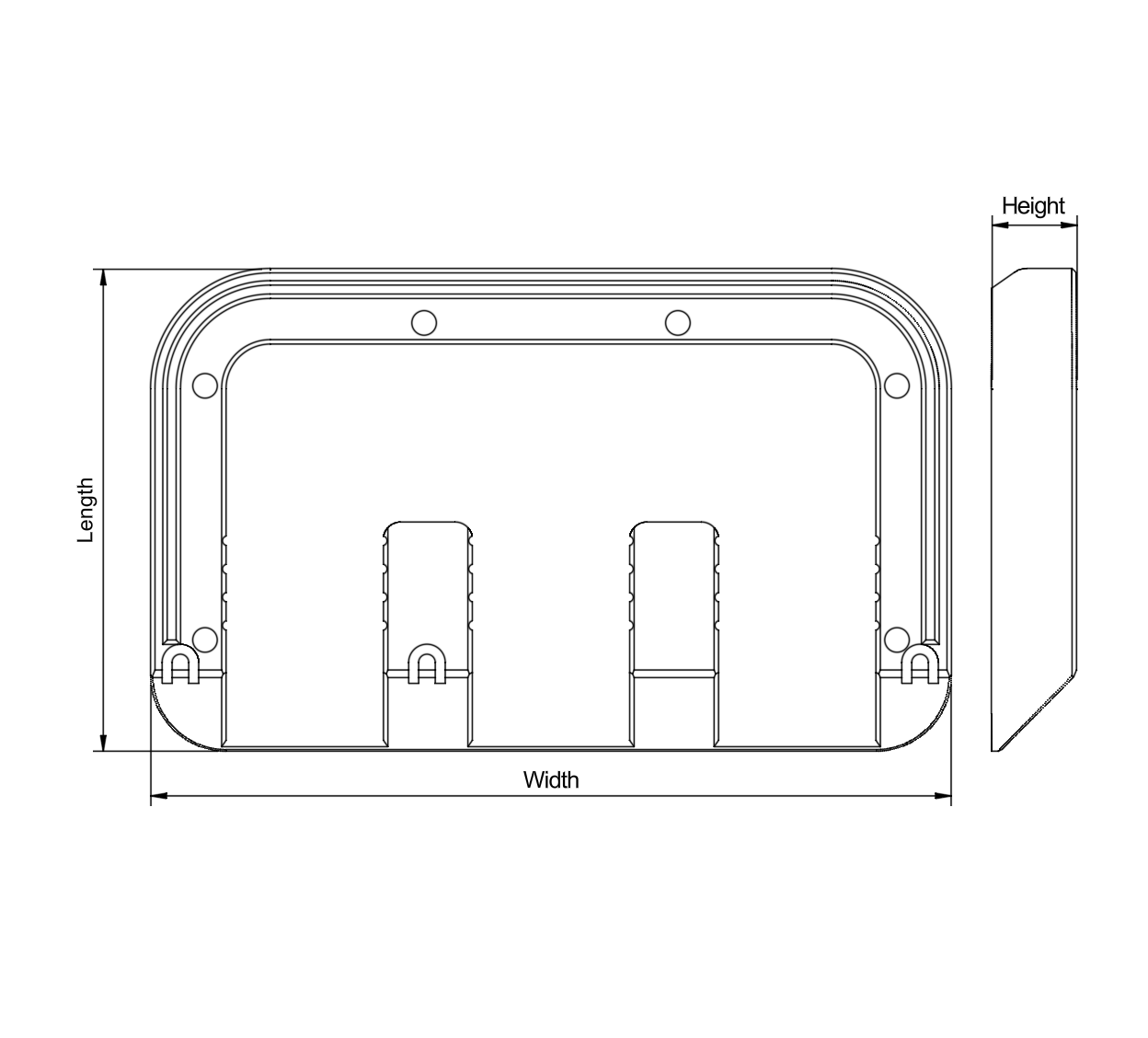

—L —·W —·H —

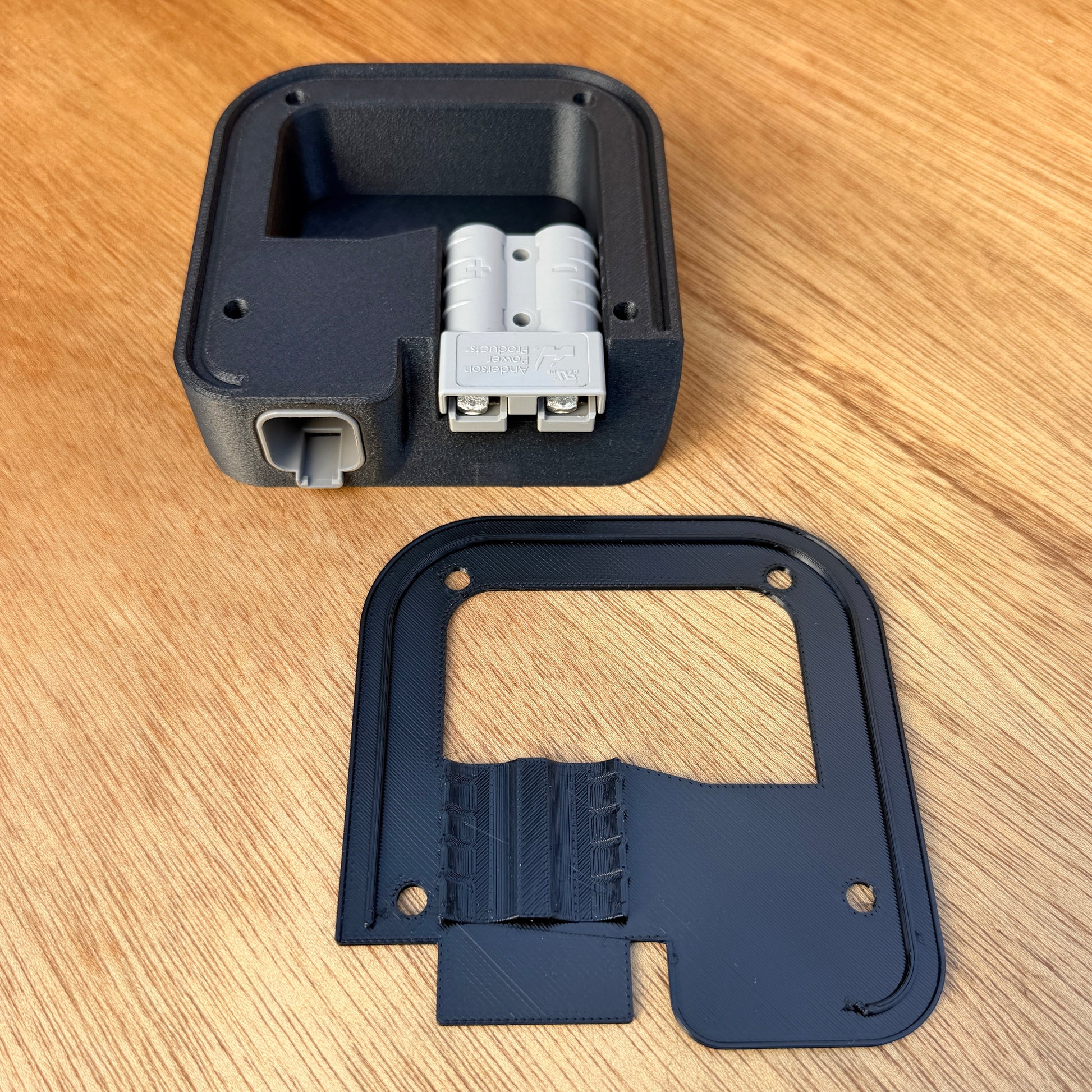

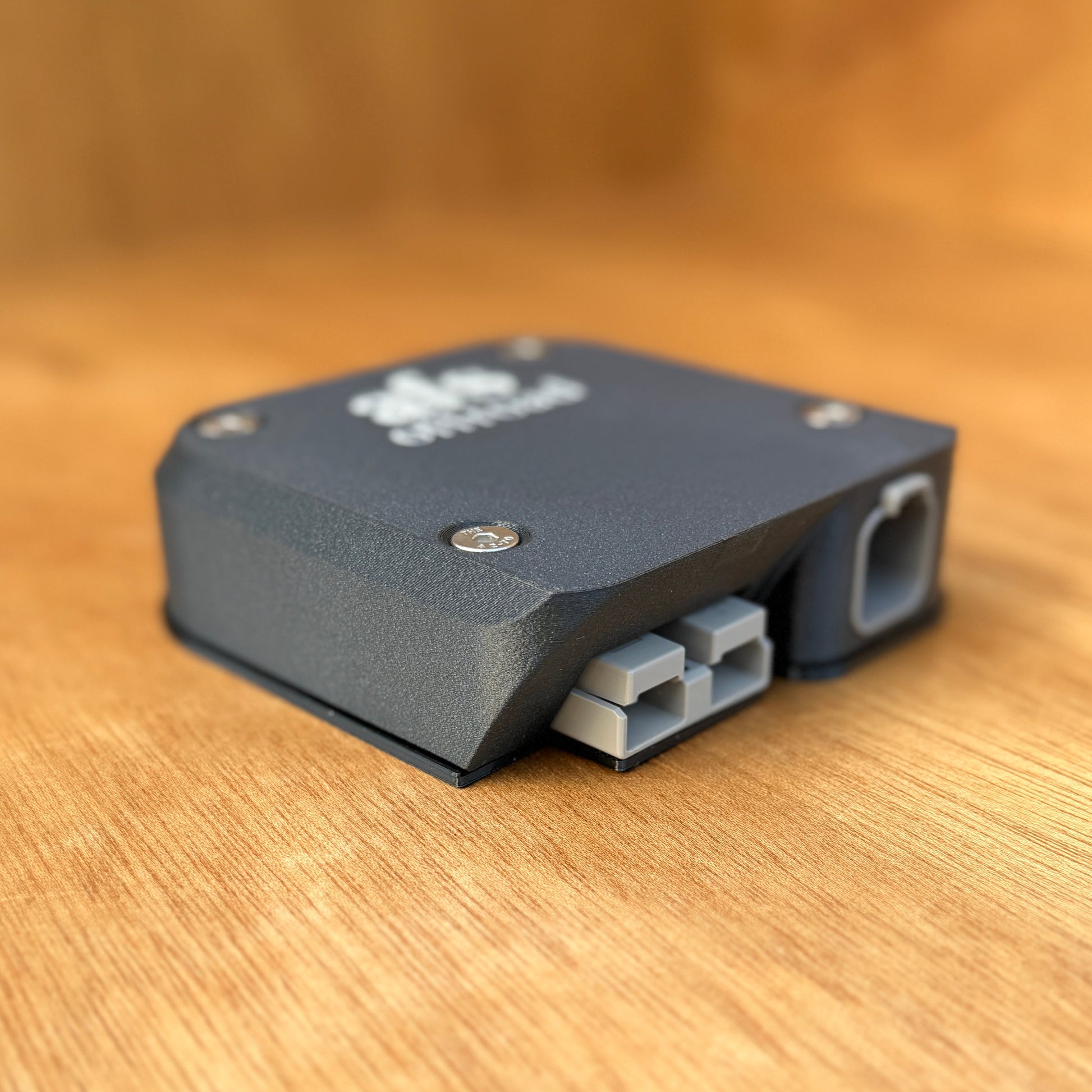

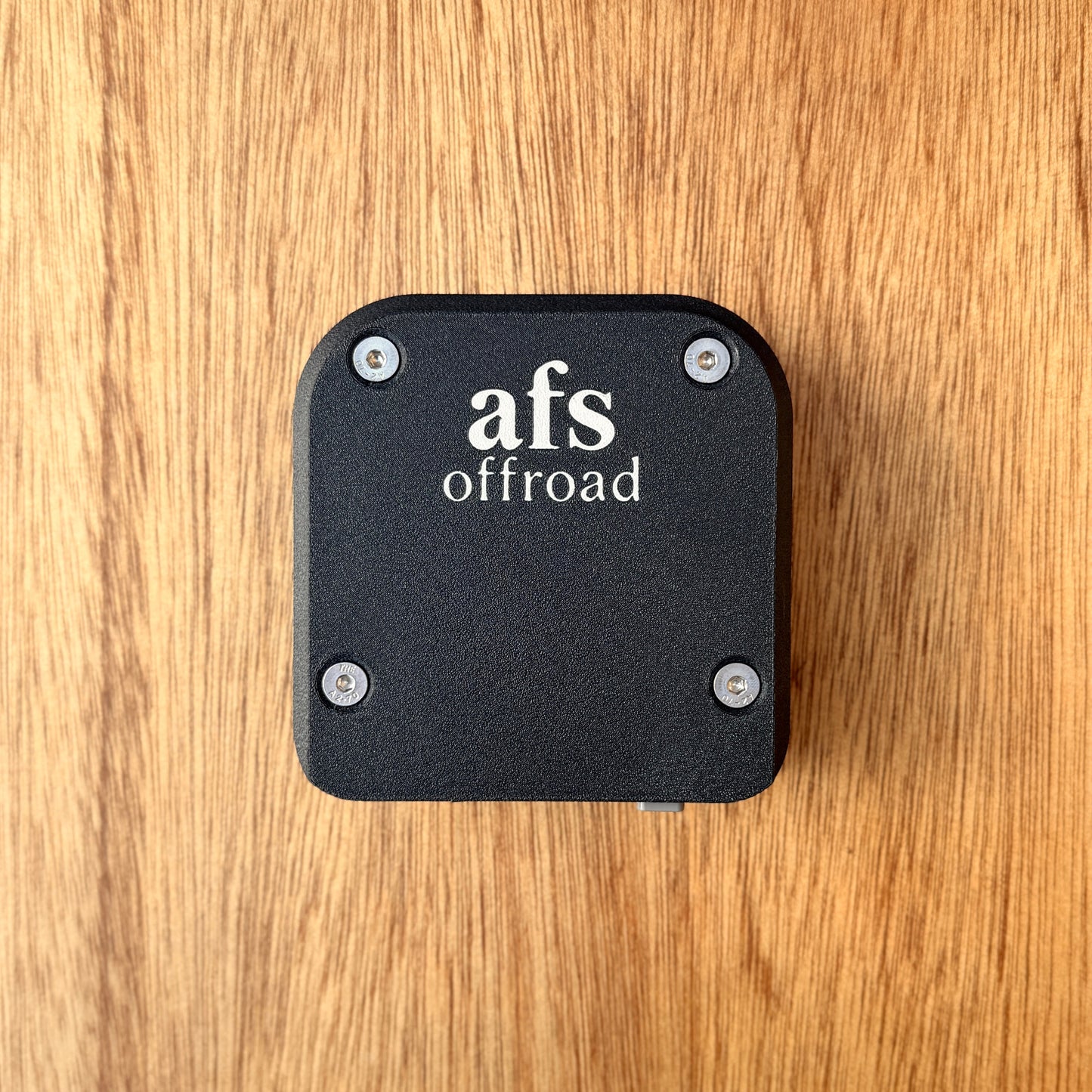

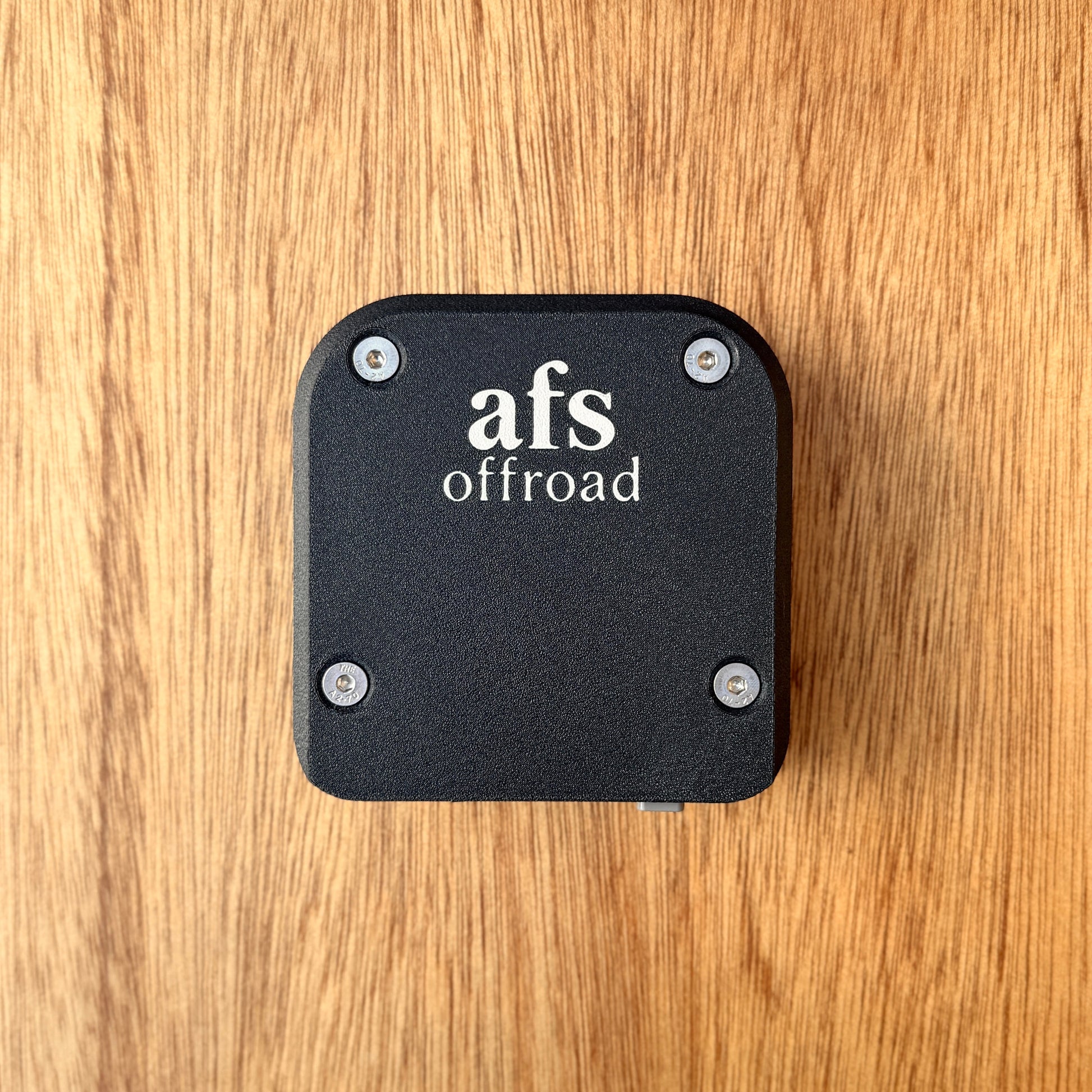

A Deutsch + Anderson plug surface mount that combines one sealed Deutsch DT connector with an Anderson plug in a single clean bracket for your canopy, ute tray, caravan, camper or 4WD.
Run a signal or accessory loom and a power circuit from one tidy surface mount, instead of two connectors cable-tied apart. Part of our Core range — our original, robust design. Designed and 3D-printed to order right here in Australia.
Does the plug come with it?
The Deutsch cutout is mount only — AFS does not sell Deutsch connectors, cables or Deutsch dust covers. For the Anderson cutout, one matching Anderson plug is included when you add it in the configurator, supplied loose. Matching Anderson dust covers can be added when in stock. More plugs are available in Anderson Plugs and Accessories.
Your options
- Colour — Black or White.
- Cutouts — one Deutsch DT cutout (2, 3, 4, 6, 8 or 12 Pin) plus one Anderson cutout (SB50, SB120, SB175, SB350 or 3 Pole SB50). You choose which side the Deutsch sits on. Not sure which Anderson size? Compare them here.
- Labels — add optional front labels so you can tell your circuits apart.
Made tough, made in Australia
Printed from ASA-GF — a UV-stable engineering plastic built for sun, heat and outdoor use. The flexible gasket behind it cushions the connectors and cuts down dust, rattle and vibration.
Features
- Flexible mounting gasket included
- 316 stainless-steel M5 mounting hardware included
- Built-in dust-cover cutout for the Anderson position
- Optional front labels
- Clean rounded shape for a neat, factory-style finish
Fitting it
Screws down over the gasket with the supplied M5 stainless hardware — snug it up, no need to overtighten. See our installation & safety guide.
