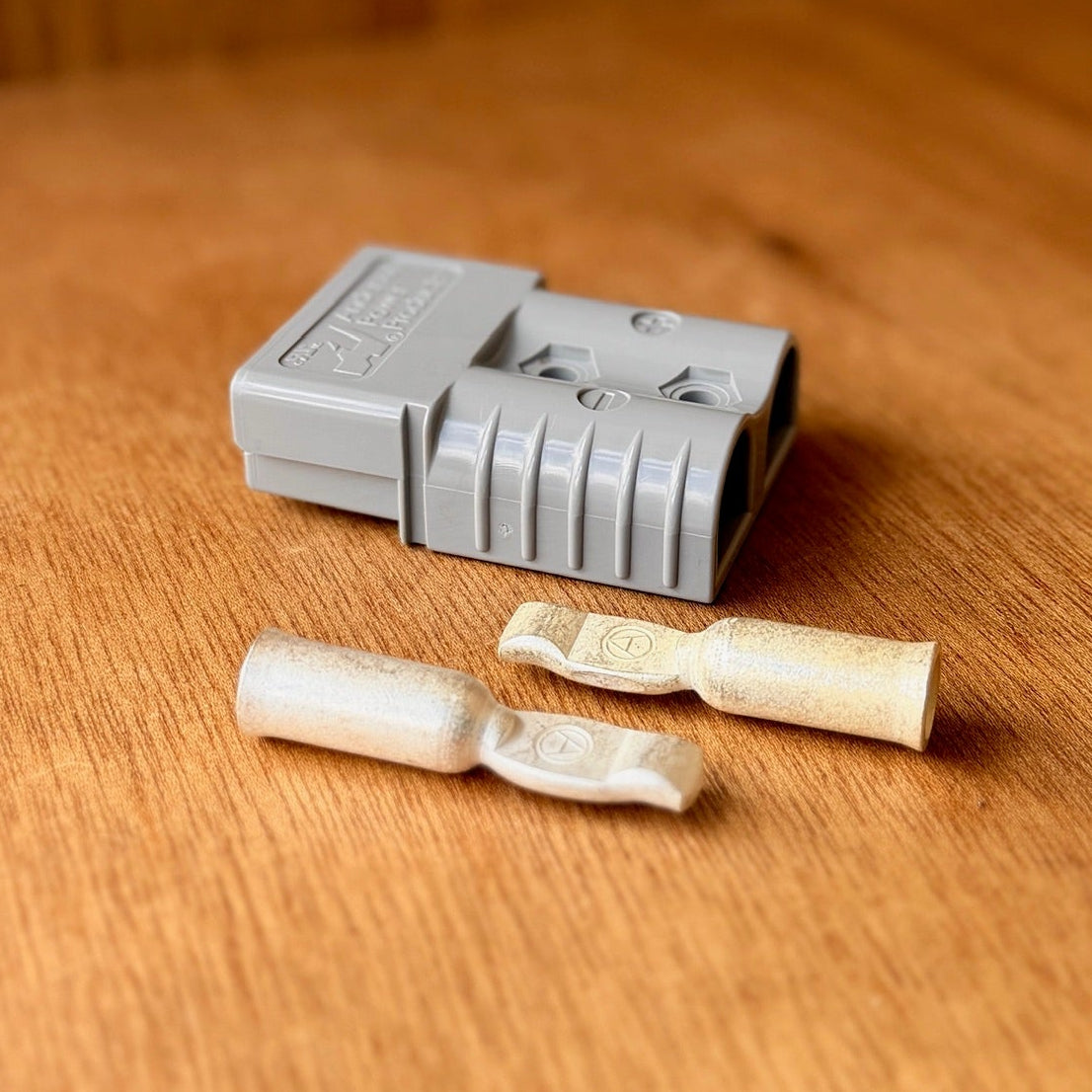

The Anderson SB120 plug is a high-current power connector commonly used for battery, solar, 4WD, caravan, trailer, industrial, and heavy-duty power setups.
The SB120 plug uses colour-coded and shaped housings to help prevent incorrect connections. These key shapes can be used to separate different circuits or help stop users from accidentally connecting different voltages together.
The SB120 housing suits cable sizes from #10 / 5.3 mm² through to #1 / 42.4 mm², depending on the contacts used. Extended range contacts allow cable sizes up to #1 AWG / 42.4 mm².
The SB120 plug can handle up to 240 amps when fitted with the correct contacts and cable size.
A chemical-resistant housing option is also available, extending the temperature range down to -40°C while offering improved UV and chemical resistance.
The SB120 housing also includes panel mounting grooves, allowing it to be mounted through panels when used with the correct mounting clamps.
Features:
Anderson SB120 plug
High-current connector
Colour-coded and shaped housing
Helps prevent incorrect connections between different circuits or voltages
Suits cable sizes from #10 / 5.3 mm² to #1 / 42.4 mm²
Extended range contacts available up to #1 AWG / 42.4 mm²
Rated up to 240 amps with the correct contacts and cable size
Chemical-resistant housing option available
Temperature range down to -40°C with chemical-resistant housing option
Panel mounting grooves for use with mounting clamps
