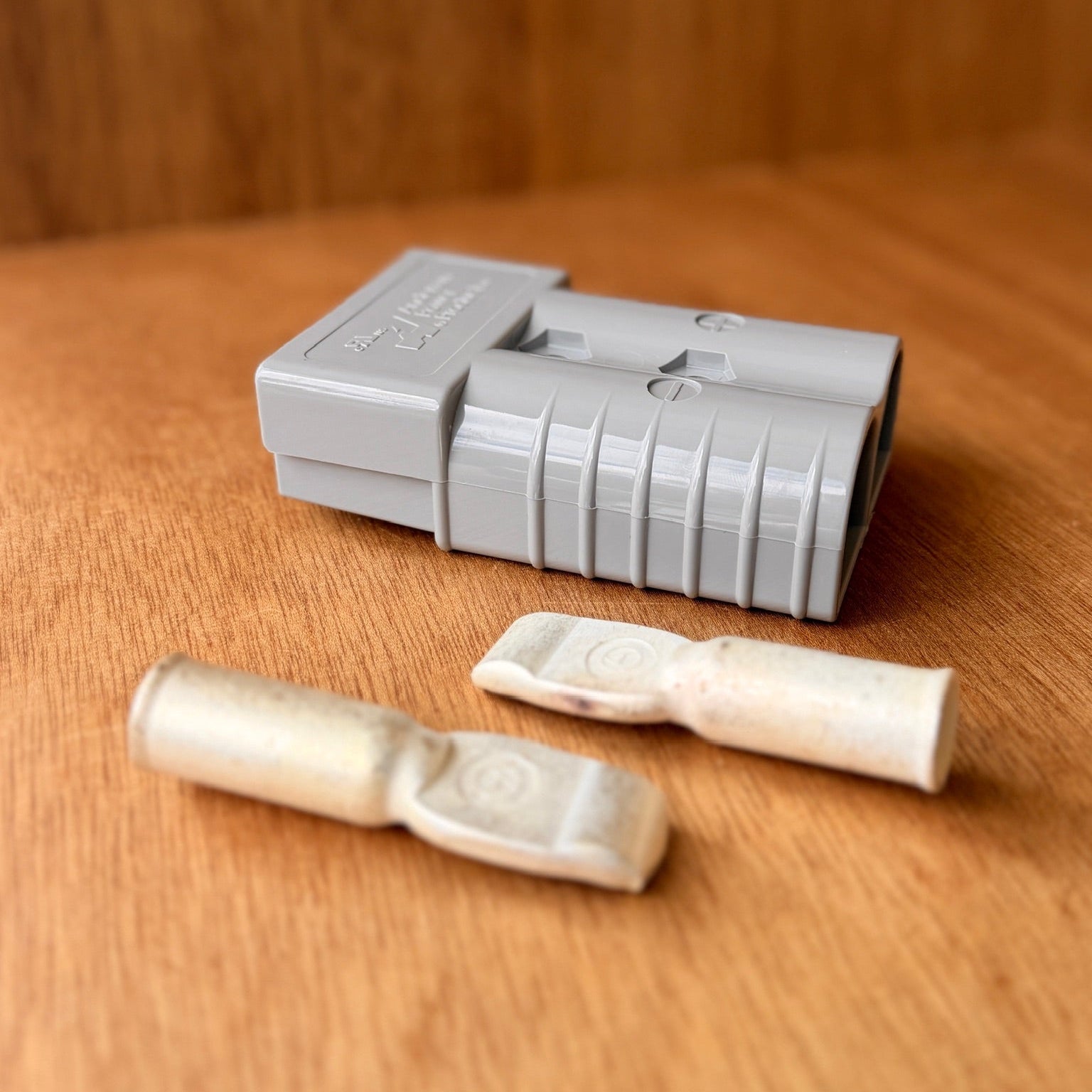

SB350 Anderson Plug Kit - Grey
A very high-current Anderson-style plug kit for large battery connections, starting applications, heavy charging setups and high-current auxiliary power.
The SB350 is the largest plug size in this Anderson plug range and is suited to installs where very heavy cable and a strong removable power connection are required. It is commonly used for high-current vehicle, battery, charging and heavy-duty 12V/24V power setups.
This kit includes one grey SB350 2-way housing and two contacts to suit 2/0AWG cable. It is designed to plug into another matching grey SB350 connector and is also suitable for use with AFS Offroad SB350 Anderson Plug Surface Mounts.
Important Colour Compatibility Note
SB350 housings are colour-keyed and are not interchangeable between colours. This grey SB350 plug is designed to connect with another matching grey SB350 plug.
Select this plug if you already have a matching grey SB350 connector fitted to your vehicle, canopy, caravan, trailer or accessory.
Common Uses
- Very high-current battery connection
- Vehicle starting or jump-start style connections where suitable
- Heavy-duty charging connection
- Large inverter or auxiliary power connection where suitable
- High-current vehicle, trailer or equipment wiring
- Heavy-duty 12V or 24V power setups
Kit Details
| Plug size | SB350 |
| Current rating | 350A |
| Colour | Grey |
| Positions | 2-way |
| Connector style | Genderless — mates with another matching grey SB350 plug |
| Kit includes | 1x housing and 2x contacts |
| Contact size | 2/0AWG / 67.4mm² |
| Housing material | Polycarbonate |
Which Anderson Plug Size Do I Need?
| Plug | Best suited for | Included contact size |
|---|---|---|
| SB50 | Fridge, solar, 12V accessories and lighter-duty canopy wiring | 6AWG / 13.3mm² |
| SB120 | Higher-current charging and heavier canopy power circuits | 4AWG / 21.1mm² |
| SB175 | Battery, inverter and heavy-duty charging connections | 2AWG / 33.6mm² |
| SB350 | Very high-current charging and starting applications | 2/0AWG / 67.4mm² |
If unsure, match the plug colour, plug size and contact size to your existing connector, cable size and expected current draw.
What's Included
1x grey SB350 Genuine Anderson housing
2x contacts to suit 2/0AWG cable
Note: This is one plug kit only. A second matching grey SB350 plug is required to make a complete connection. Crimping tool, cable and dust cover are not included.
Important: water protection and electrical installation
Not waterproof: Dust covers, mounting gaskets and connector mounts do not create a waterproof or watertight seal. Install them in a protected location away from direct spray, high-pressure water and immersion.
Qualified installation required: All electrical wiring and installation must be carried out by a suitably qualified electrician or auto electrician, as appropriate. The installer must select correctly rated cable, terminals, fusing and circuit protection for the application.
